VELO III - safe transport and easy loading of your e-bicycles
Mostly they weigh around 25 kg, are built more massive and thicker in the frame than normal bicycles: E-bicycles. However, rear-wall bicycle carrier systems are less suitable for safe transport with the camper. Mounted high on the rear wall of the camper, loading the heavy e-bicycles is a problem.

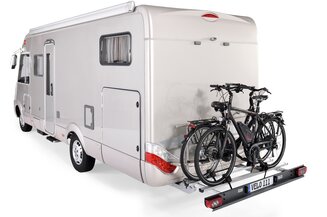

The VELO III bicycle rack is fixed directly to the frame of the camper. It is sturdily mounted, has a low loading height, a low tare weight and has a higher payload adapted to e-bicycles. The e-bicycles stand firmly in the attached rails.
The practical ratchet quick-release fasteners on the support arms and bike rails make securing your e-bicycles child's play. The soft padding on the support arms protects the bicycle frame from scratches. The sturdy construction makes them ideal for e-bicycles.
Saving space with folding function
Folding up or down is very easy. Loosen the levers on the light holder and the platform, fold them up and tighten them again. The VELO III can remain on the camper to save space.
Your advantage:
- Payload: up to 80 kg
- Own weight approx. 16 kg
- EG type approval available
- For 2 E-bicycles or max. 3 bicycles
- Folding platform
- Bicycle rails and holding arms with ratchet quick release
- Completely made of aluminium
- Removable without tools
- Incl. Standard pick-up element
Framework sets:
- 2 bicycles or e-bicycles
- 3 bicycles
| Article number | Set-up set | Payload | Weight | Material | Function | Loading depth | Wide |
|---|---|---|---|---|---|---|---|
| 1884639 | 2 e-bicycles | 80 Kg | 25 kg | 600 mm | 1980 mm | ||
| 1884640 | 3 e-bicycles | 80 Kg | 28.3 kg | 700 mm | 1980 mm |
Carrier systems campers
VELO III - safe transport and easy loading of your e-bicycles
Payload: The max. payload on the vehicle depends on the vehicle manufacturer/model. To avoid damage to the vehicle, it is essential to observe the max. permissible payload in connection with your vehicle. In some cases, load-carriers on the vehicles are not approved by the assembly partner.
Awards
FAQ
Due to our experience and know-how, we are able to offer you couplings for most European vehicles. Other vehicles can be customised by us or our service partners. Please observe or check the permissible trailer loads of your vehicle (vehicle documents, COC papers). Alternatively, if the vehicle is not included in the papers, a solution can certainly be found in consultation with the TÜV.
In order for us to be able to process your process your enquiry as quickly, correctly and without delay, it is necessary that your information is complete.
Base vehicle
Camper manufacturer
Model/trade name
Year of construction
Chassis number
Supplementary information such as water tank, frame extension available, etc.
If any information is missing, we will contact you immediately.
It is an indication of the strength of a towbar. It is calculated according to the following formula:
D = G(K) x G(A) x 9.81
G(K) + (A)
If G(K) is the permissible total weight of the towing vehicle in tonnes(t) and G(A) is the total weight of the trailer, also in tonnes; e.g. a Fiat Ducato with 3.5 t permissible total weight and a trailer load of 2 t requires a coupling with a minimum D value of:
D = 3.5 x 2.0 x 9.81 = 12.50 kN
3.5 + 2.0.
However, the actual permissible trailer load depends on the entry under item 28 or O1 in the vehicle documents. Of all the given values, the weakest value is always decisive for approval.
When it comes to campers, there are many factors to consider in order to be able to assess what can be "carried" by the vehicle. Among other things, the general vehicle data such as rear axle load and total weight must be taken into account to determine the payload capacity. It is also important to clarify the load-bearing capacity of the camper chassis and its possible chassis extension.
In many cases, an original chassis (e.g. Fiat/Mercedes/etc.) is too short to build a camper. This is why a frame extension is usually necessary. It supports the rear garage or the entire rear area of the vehicle.
Since a rear garage with, for example, a 150 kg payload has significantly lower forces than a 2,000 kg towbar or an additional load-carrier, the frame extension must be reinforced with EC-tested components to create a stable connection.
For the installation of a towbar or a load-carrier, the reinforcement of the frame extension with corresponding components is mandatory.
AHK and load-carrier can be combined (use not possible at the same time).
Load-carriers can still be used when changing vehicles. Only the vehicle-specific mounts are required.
The electric cable set must always be ordered separately (not applicable if a towbar is available).
The X dimension indicates the overhang of the camper body over the standard chassis. When ordering, please state the dimensions entered in the drawing if your vehicle is not listed in our database. (If in doubt, ask us.) If a tank, storage compartment or similar is fitted to your vehicle in the area labelled "Z", please request a separate dimension sheet by telephone.
As the user of a load-carrier, you are responsible for the correct securing of the goods being transported.
With our universal lashing strap set, optimum load securing is guaranteed for almost every scooter.
A scooter is fixed to the handlebar with the help of our holding arm and is thus secured against falling over. Now it can be securely lashed down. For this purpose, wheel brackets are attached to the standard motorbike tub and the tyres are secured with straps. The scooter still has to be pulled tightly into the springs with the tensioning straps. Our load-carriers are equipped with ring eyelets for this purpose.
The safe transport of a bicycle or e-bike is ensured with holder bars and wheel trays. Both elements are equipped with comfortable ratchet quick-release fasteners.
